PNW Components travel adjust system allows for a total of 25mm travel reduction in 5mm increments. If you were riding that line between travel sizes you can now fine-tune the perfect fit by following the easy directions below:

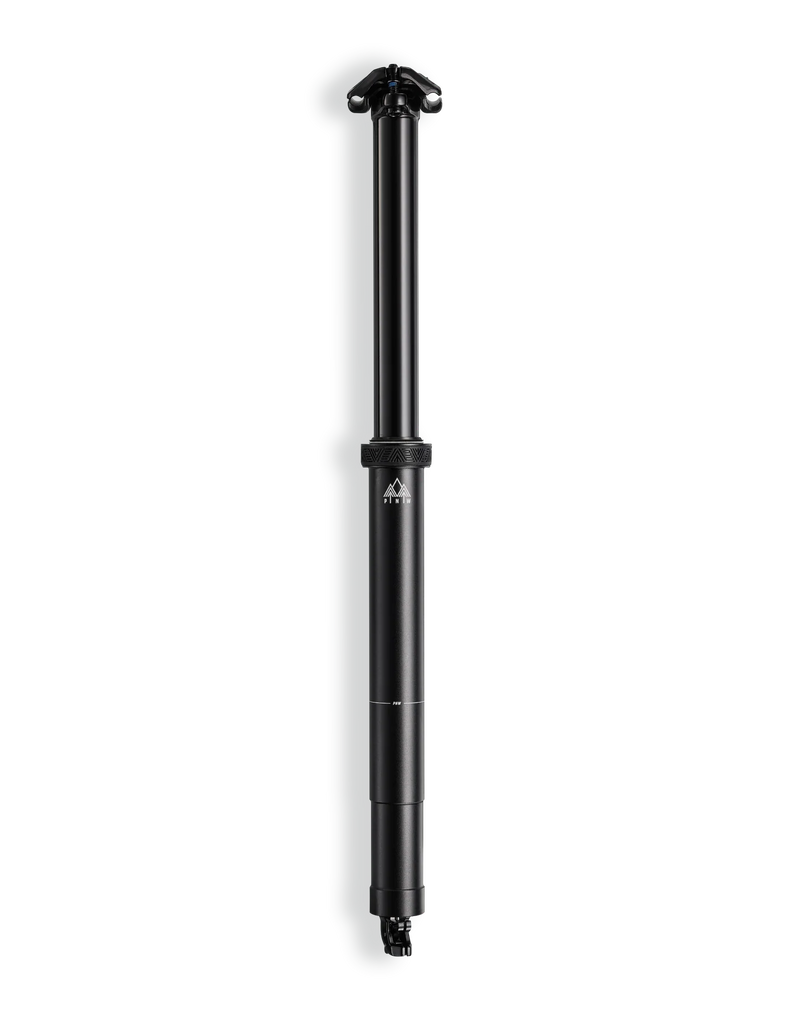

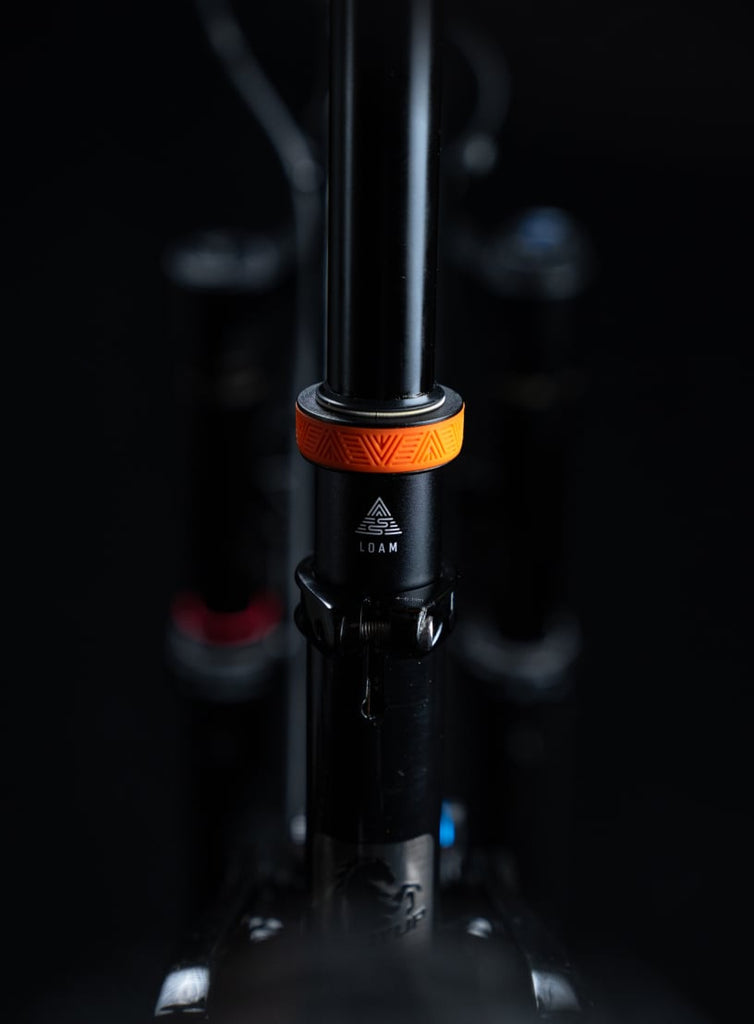

Reengineered for rugged climbs and technical descents, the next-generation of the Loam Dropper takes our renowned reliability to new highs… and lows. Additional sizes and a lower stack height provide a modern fit for your frame, and more room to move with less saddle in your business. A sealed dual-chamber PNW Cartridge delivers quiet and smooth fast action with a rock-solid, simple-to-service design. No matter what ups and downs the trail throws at you, you can shred easy knowing the Loam is backed by the PNW Lifetime Warranty.
Want to customize? Find the Loam Midcap Band in all our colors here.
- Travel Options: 125, 150, 175, 200, 225mm

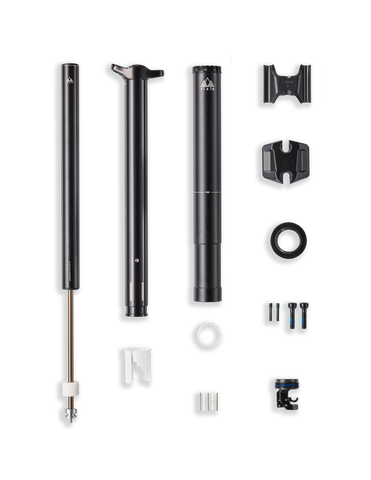

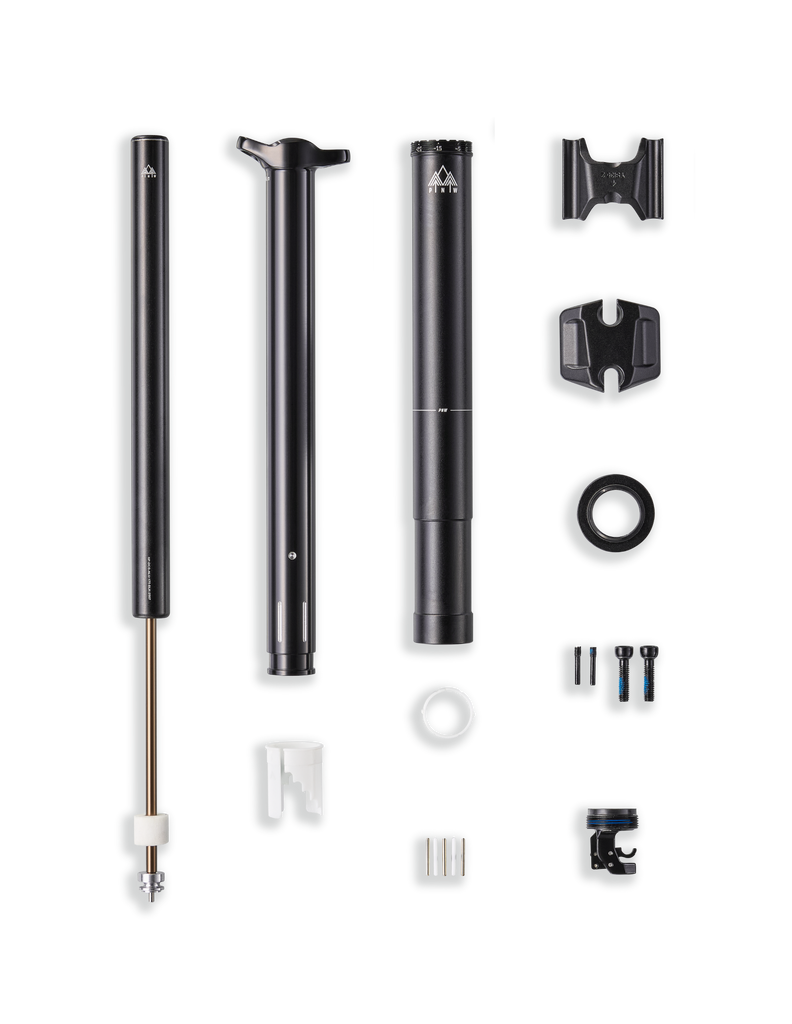

- Cartridge: PNW Dual-Chamber Sealed
- Tool-Less Travel Adjust
- Routing: Internal
- PNW Lifetime Warranty
FEATURES
SPECS
-
Cartridge: PNW Dual-Chamber Sealed Cartridge
-
Routing Method: Internal
-
Diameters: 30.9mm, 31.6mm. 34.9mm
-
Weight: 452g-700g (depending on size)
-
Travel: 125mm, 150mm, 175mm, 200mm, 225mm
-
Stanchion Diameter: 30.9mm & 31.6mm: 26mm, 34.9: 29mm
-
Lever Compatibility: Compatible with all PNW levers and most cable-actuated levers from other brands.
-
25mm of tool-less travel adjust in 5mm increments hits every 5mm increment between 100 and 225
- Find installation manuals here
HOW DOES TRAVEL ADJUST WORK?
- Begin by lowering your dropper at or below the desired travel length (just make sure it’s not fully extended!)
- Unthread the midcap with your hand and slide it up to reveal the white DU Bushing.
- You’ll see negative numbers with corresponding notches machined into the post (each # represents decreasing travel.
- Slide the DU bushing up and rotate it to align the black arrow with the amount of travel you would like to reduce, then seat the arrow into the machined groove. (Make sure it’s fit securely into these notches!)
- After pushing the DU Bushing back down, lower the midcap and hand tighten (no need to go overboard!) and ride off into the sunset with the perfect travel for you.
SERVICE PROGRAM
Like most of us, PNW dropper posts need a little TLC to work their best. This service can be done at home, but if you're not feeling that grease stain life, PNW can take care of it for you. Their service program treats your PNW dropper post for regular wear and tear. Learn More >>>
FAQ
Is this post compatible with my bike?
Start by checking if your bike is externally or internally routed. The Loam is only compatible for internally routed frames. Second check the seat tube diameter. Want help finding the right dropper for your bike? Click here >>>
What is the tool less travel adjust system?
This system allows you the maximum drop for your post size. We accomplish this through a notched bushing under the midcap collar so you can dial in a more tailored fit.
How often do I need to service the post?
As riding frequency and conditions vary, PNW Components do not have a strict service interval. Instead, they recommend servicing your post if it starts to feel sticky/slows down. When it does come down to service it is a quick and easy, at home process. Check out our service video here
