Description:

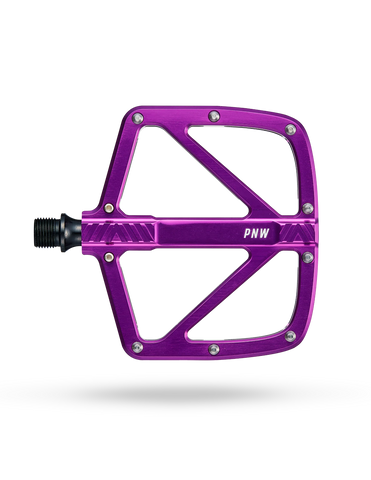

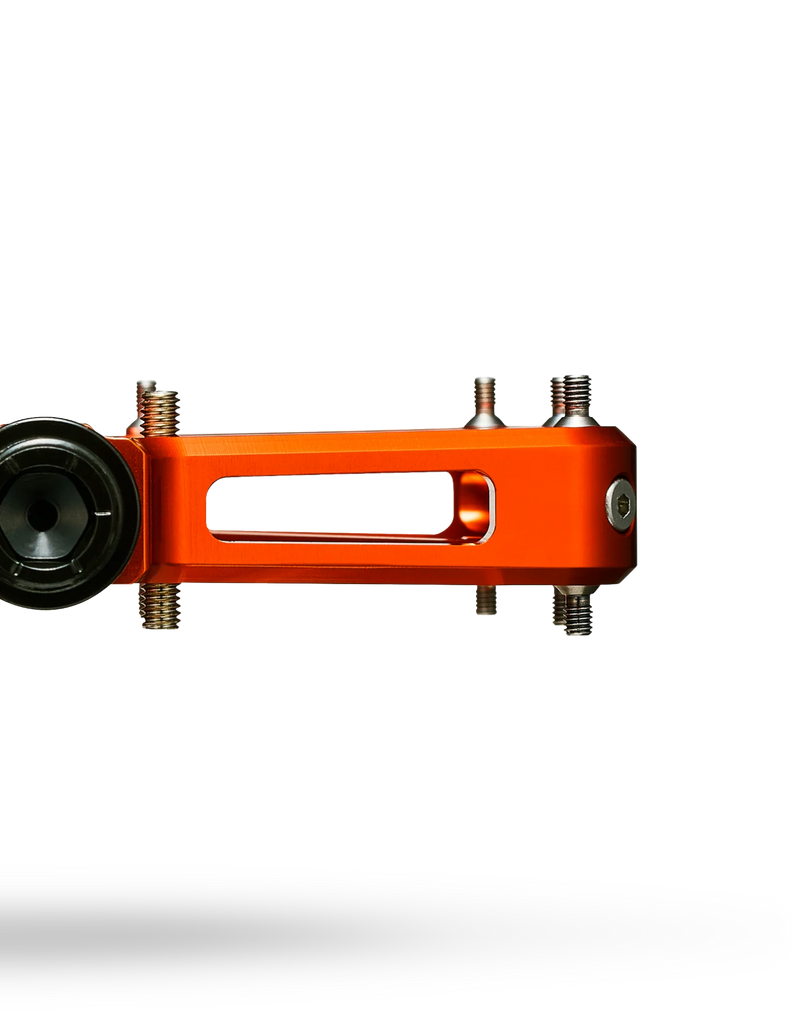

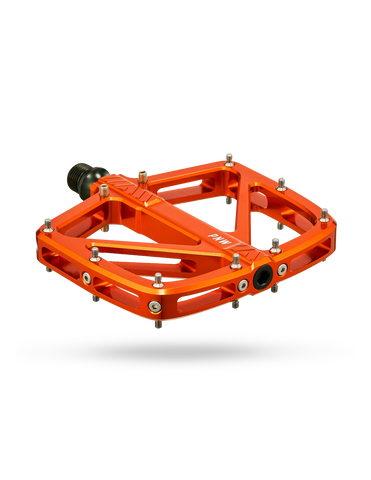

Like riding clipless without the clipout, the Gen 3 version of the Loam Pedals are super sticky and combine a strong, redesigned axle system with a foot cradling platform that keeps you locked in and ready to shred.
- CNC’d Pedal Body
- Tectonic™ Pins

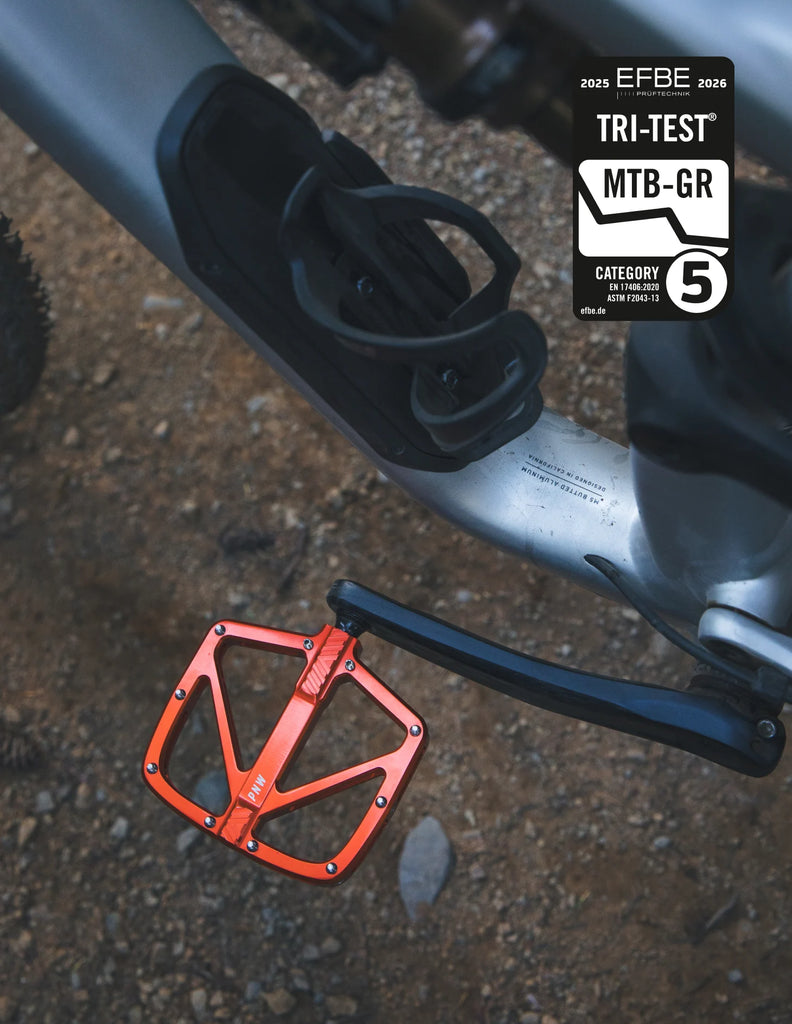

- EFBE Tri-Test E-Gravity certified
- Height: 115mm, Width: 109mm
- Weight: 440g
Features
SPECS:
| Length | 115mm |
| Width | 109mm |
| Platform Height | 15.5mm front/ back 14mm center 17mm over axle |
| Pin style | Tectonic & Cylinder thread |
| Pins per side | 10x per side, 12x total in pedal |

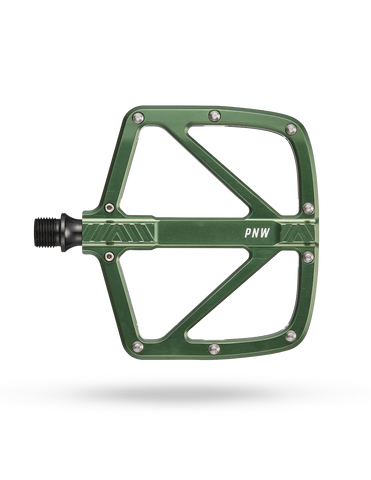

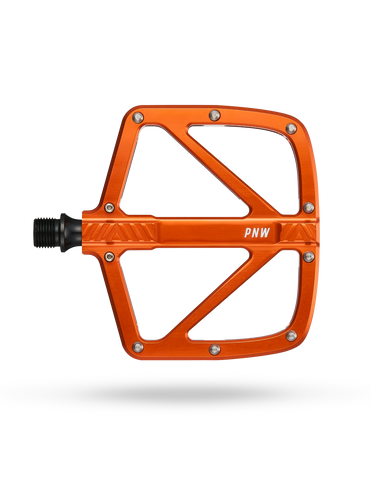

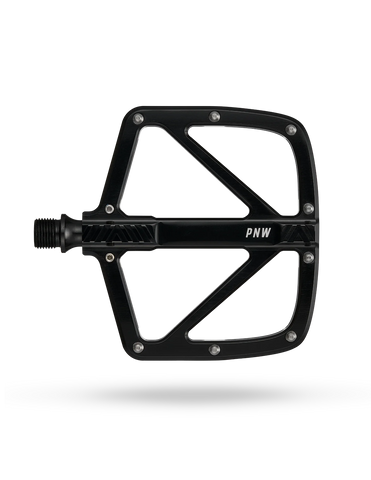

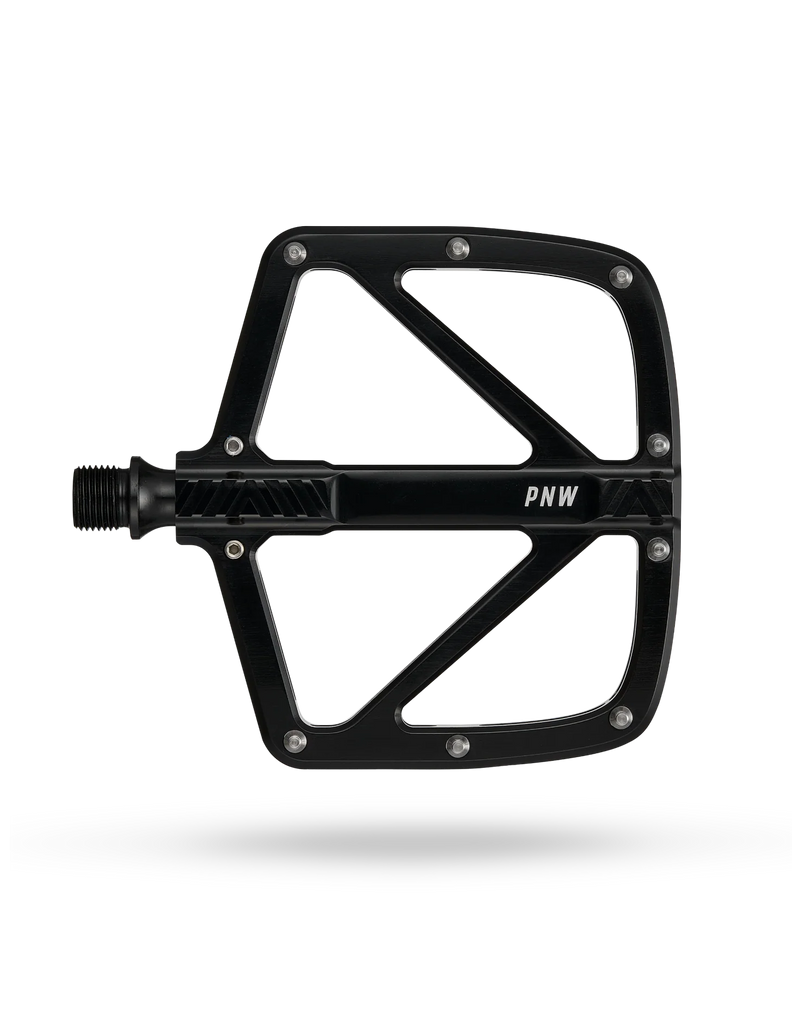

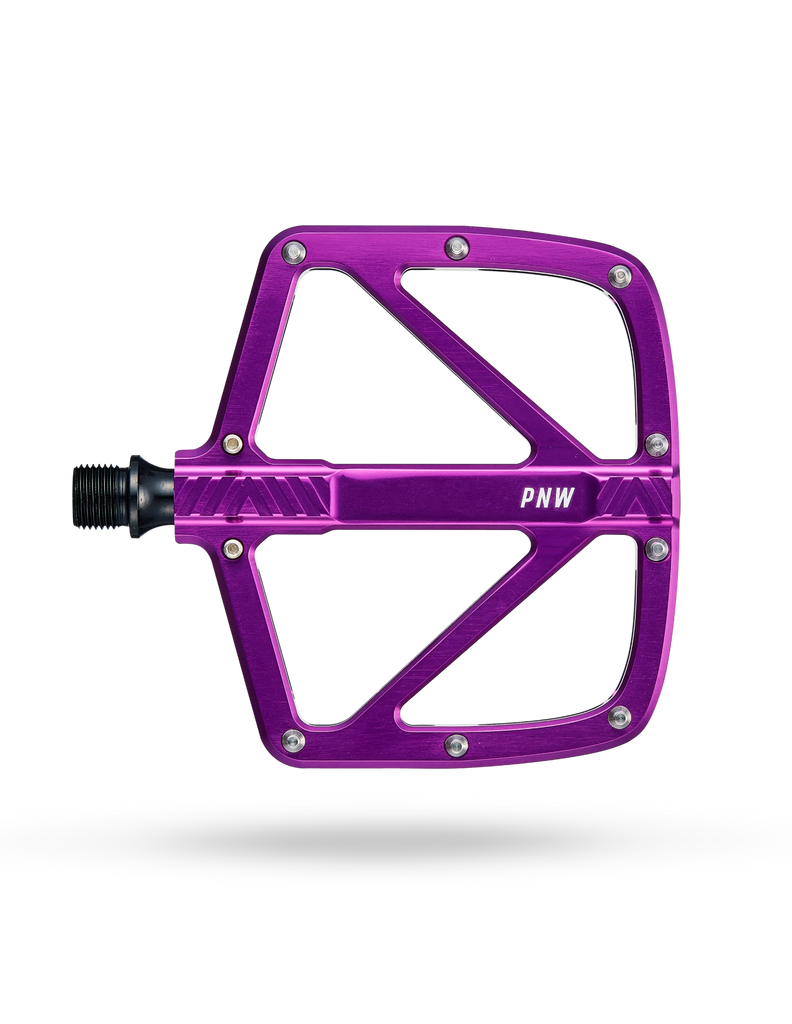

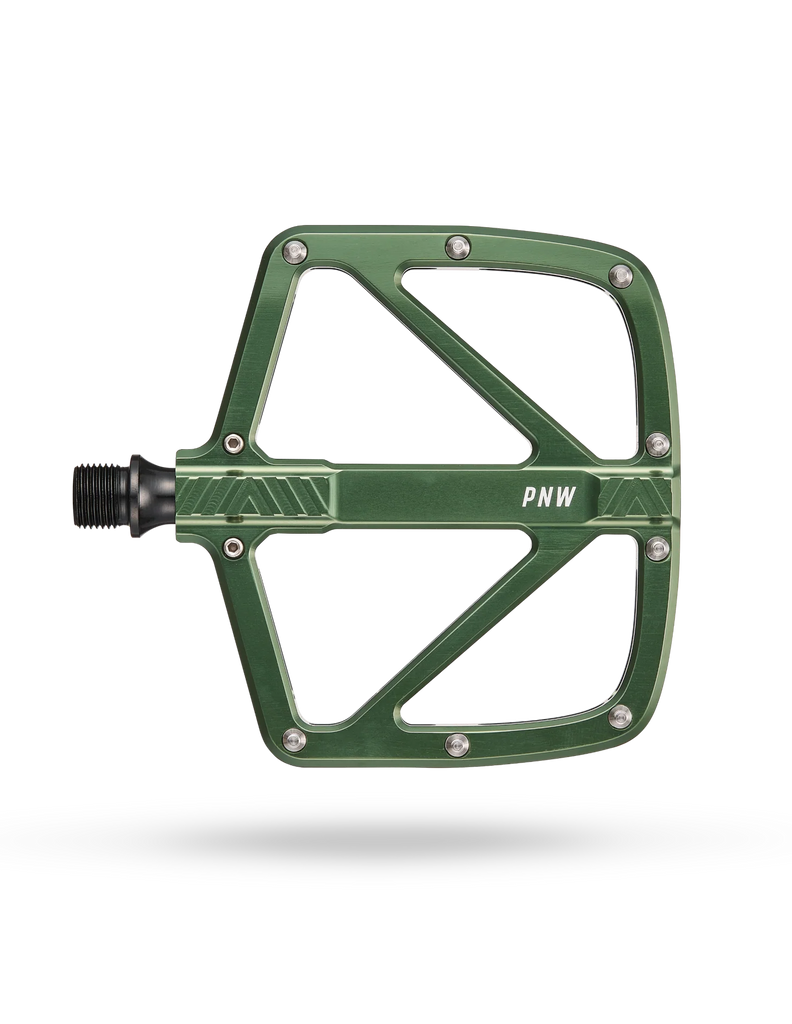

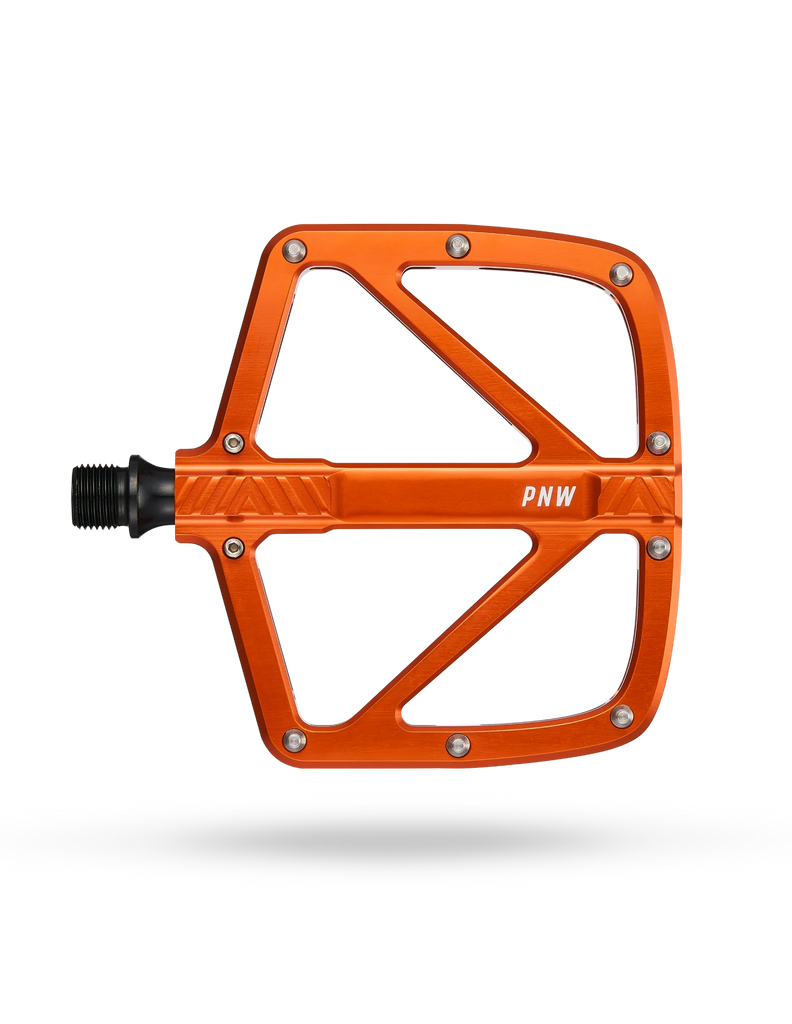

| Colors | Blood Orange, Moss Green, Fruit Snacks, Lightning, BlackOut Black |
| Weight | 440g combined, 220g each |
| Threaded cylinder pin hex size | 2mm for threaded cylinder pin |
| Tectonic Pin Set Screw size | 2mm for Tectonic Set Screw |
| Pedal body end cap |
6mm |
| Axle nut | 5mm |

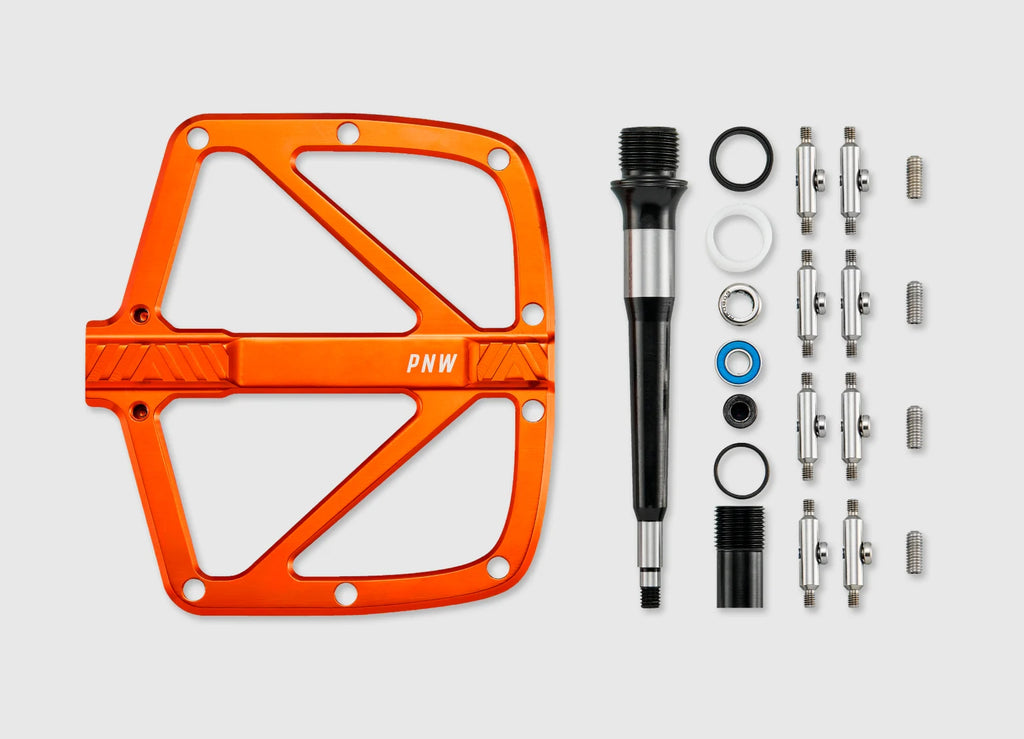

| Bearing Type and Count Per Pedal |
1x Sealed Cartridge Bearing, 1x Needle Bearing, 1x Bushing, 1 O-Ring and 1x Wiper Seal |
| Platform Material | Aluminum |
| Pin Material | Stainless Steel SUS 630 |
| Axle Material | Alloy Steel SNCM220 |
| Manufacturing process |
Extruded + CNC'd + Anodized + Laser |
| Axle nut torque rating |
5-6NM |
| Tectonic Pin Set Screw Torque Rating |
1.5NM |
| Threaded Cylinder Pin Torque Rating |
1NM |
